Overview

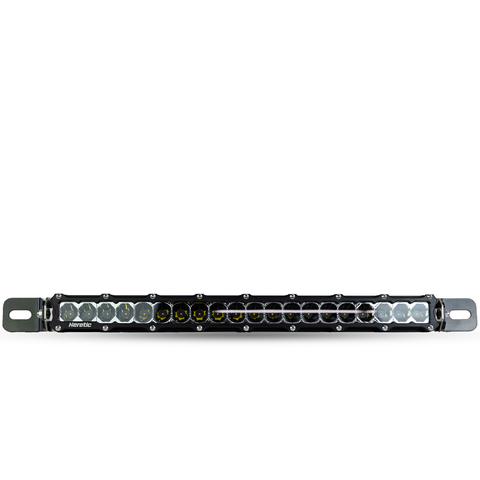

The Heretic 20" LED light bar is one of the most rugged and reliable lights on the market. These high performance 6-series LED light bars are designed and assembled in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. With the bracket this becomes a 22" LED light bar.

Features

USA Patented 6061 CNC Aluminum Grade Billet Housing
(40) 6-watt CREE LED
IP68 rated Stainless Steel Mounts
Designed, Assembled, Supported, and Shipped in Centerville, Utah
Customize Your Beam Pattern: Combo, Spot, or Flood

Vehicle Trim Compatibility

Ford Ranger ('19+)

Details/Specs

Shipping Weight: 5lbs
Type: 20” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White

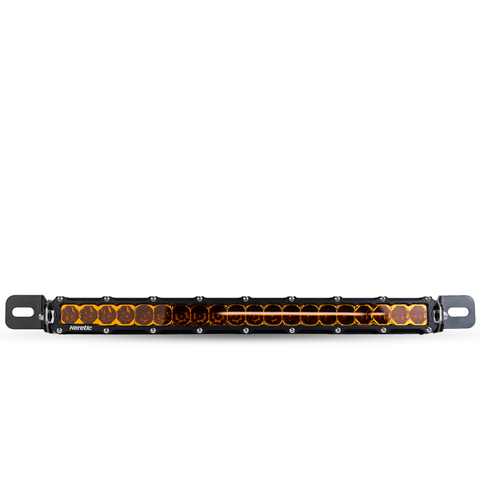

Lens Color: Amber
Wattage: 120W
Amp Draw at 13.8V: 11.3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 21” x D 1.5” x H 2”

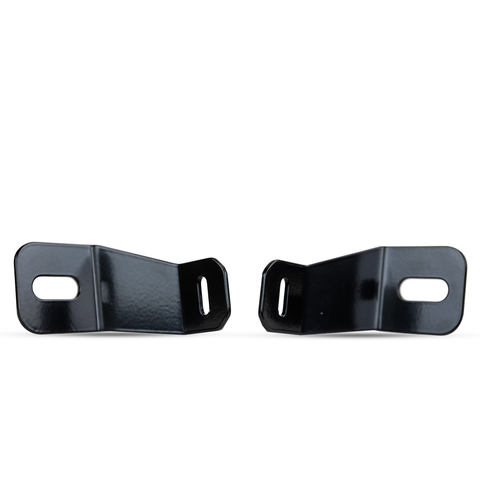

DIM (Light W/ Bracket): L 22” x D 1.5” x H “2.4
Lumens: 14520 lm
Lux At 10m:

Spot: 4125 lx
Flood: 878 lx
Combo: 2826 lx

Candela:

Spot: 412500 cd
Flood: 87750 cd
Combo: 282600 cd

Beam Distance:

Spot: 1285 m
Flood: 592 m
Combo: 1063 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

Ford Ranger (2019+) - 20" LED Bumper Light Bar
