Overview

Shipping Time: 3-4 Weeks

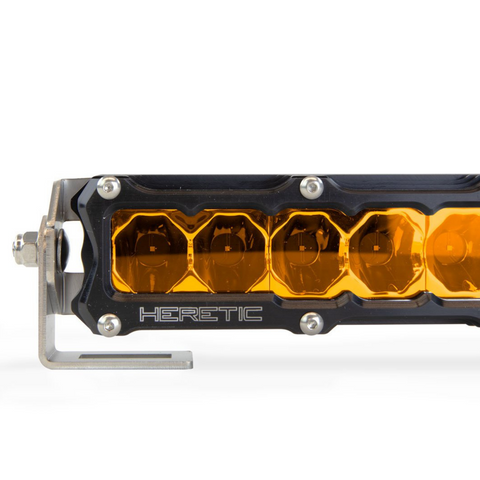

The Heretic 20" Amber LED light bar is one of the most rugged and reliable lights on the market. These high performance 6-series amber LED light bars are designed and manufactured in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 20” Amber LED light bar is recommended for forward-facing applications in the bumpers of trucks, jeeps, SUVs, and UTVs. TBD, specifically optimized for clear night conditions. This light bar is best for cutting through dusty and foggy conditions. With the bracket this becomes a 22" LED light bar.

Features

USA Patented 6061 CNC Aluminum Grade Billet Housing
(20) 6-watt CREE LED
IP68 rated Stainless Steel Mounts
Designed, Manufactured, Assembled, Supported, and Shipped in Centerville,Utah
Customize Your Beam Pattern: Combo, Spot, or Flood
Customize Your Bezel - Contact Heretic Studio

Parts Sold Separately

Wiring Harness
Aftermarket Mount for Roof Rack Attachment

Details/Specs

Shipping Weight: 5lbs
Type: 20” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Amber
Wattage: 120W
Amp Draw at 13.8V: 11.3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 21” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 22” x D 1.5” x H “2.4
Lumens: 14520 lm
Lux At 10m:

Spot: 4125 lx
Flood: 878 lx
Combo: 2826 lx

Candela:

Spot: 412500 cd
Flood: 87750 cd
Combo: 282600 cd

Beam Distance:

Spot: 1285 m
Flood: 592 m
Combo: 1063 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

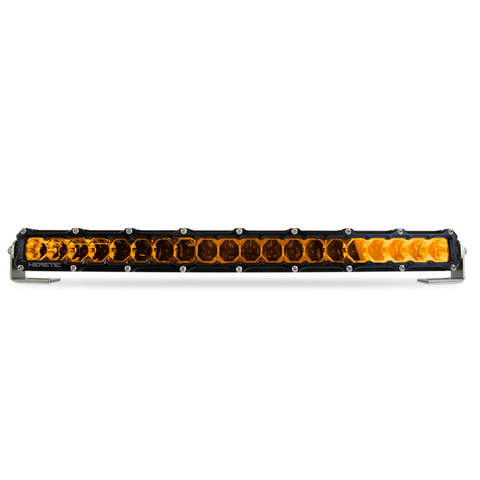

20" Amber LED Light Bar
