Overview

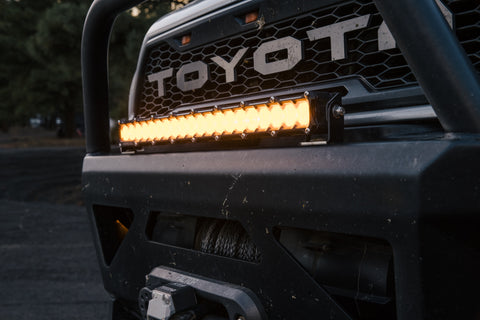

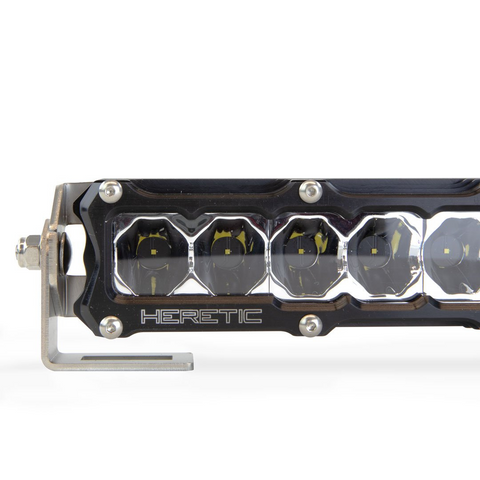

The Heretic 20" LED light bar is one of the most rugged and reliable lights on the market. It is Designed, Assembled, Supported, and Shipped in Centerville, Utah. These high performance 6-series clear LED light bars are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 20” LED light bar is recommended for forward-facing applications in the bumpers of trucks, jeeps, SUVs, and UTVs. Its specifically optimized for clear night conditions. This light bar is best for clear night conditions. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo. With the bracket this becomes a 22" LED light bar.

What's Included

(1) 20 Inch Clear Light Bar
Pigtail (Ending in a (+) and (-) wire ready to splice)
Mounting Hardware

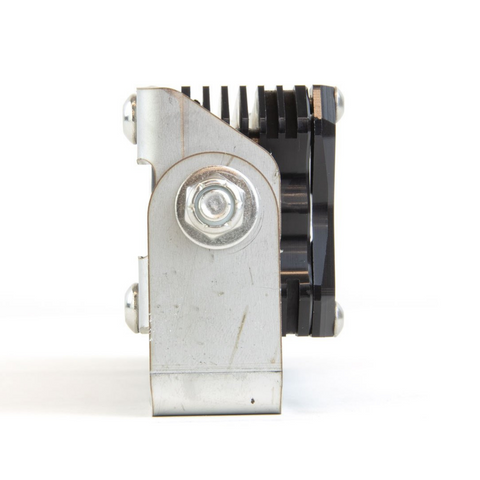

Stainless Steel Mounts

Parts Sold Separately

Wiring Harness
Aftermarket Mount for Roof Rack Attachment
Amber Lens Attachment

Details/Specs

Shipping Weight: 5lbs
Type: 20” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 120W
Amp Draw at 13.8V: 11.3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 21” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 22” x D 1.5” x H “2.4
Lumens: 14520 lm
Lux At 10m:

Spot: 4125 lx
Flood: 878 lx
Combo: 2826 lx

Candela:

Spot: 412500 cd
Flood: 87750 cd
Combo: 282600 cd

Beam Distance:

Spot: 1285 m
Flood: 592 m
Combo: 1063 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

20" Clear LED Light Bar
