Overview

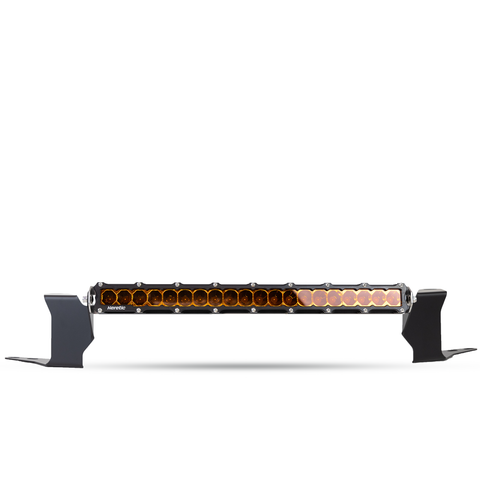

Kit Contains: 20" Light Bar, Brackets & Mounting Hardware. Wire harness sold separately.

The 6 series LED 20 inch light bar is one of the most rugged and reliable lights on the market. Typically this light bar is used in forward-facing applications in the bumpers of trucks, jeeps, SUVs, and UTVs. It is sized just right that it fits in most aftermarket bumper openings. The housing is a CNC machined aircraft-grade aluminum that makes it the most durable and high-quality housing on the market. We use the highest-grade LEDs and circuit boards that allow this light to be as bright as it can be while still controlling heat. Internal reflectors have been designed and optimized to shape and put out the best light possible. Make this light yours. Customize the reflector beam configuration to all spot, all flood, or combo. Chose between a clear lens or get an amber lens for dusty and foggy conditions. Color the bezel to match your rig. Give us a call and we'll make it happen. Designed and assembled in the USA!

Specifications

(20) 6-watt CREE LED
Full 120 watts driven at 100%
14520 lumen
6061 billet housing
22 x 2 x 1.5
I-P68 rated stainless steel mounts
Weight 3 lbs
Amp draw 11.3 Peak at 13.8V
LUX at 10m: 4125
Candella: 412500

Installation Guide

Click to Download: Tundra (22+) Bumper 20in Light Bar Kit Install Guide PDF

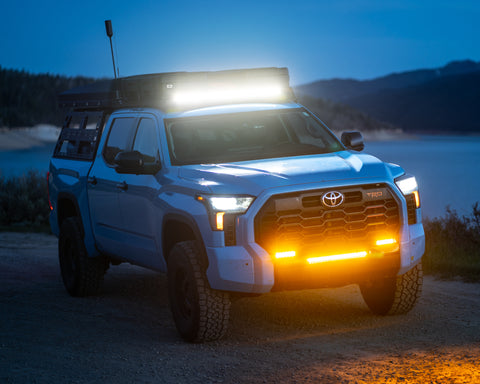

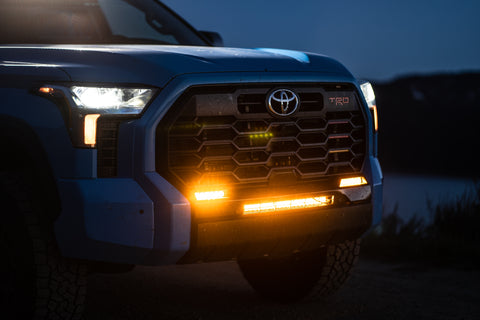

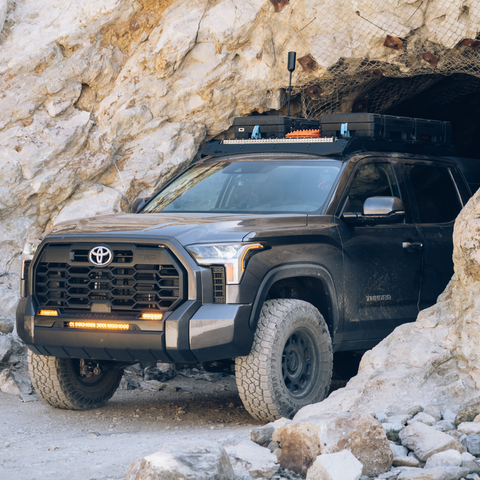

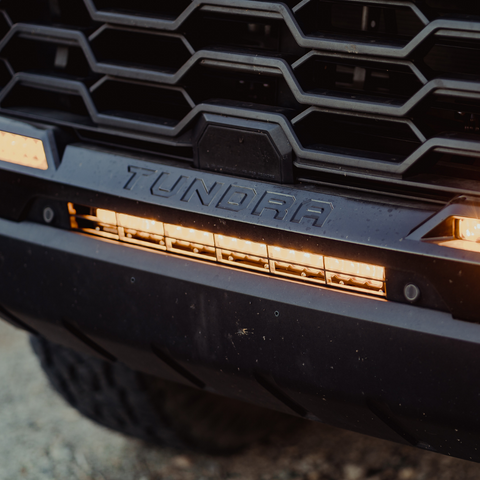

Toyota Tundra (2022+) - 20" LED Bumper Light Bar - Amber Lens
