Overview

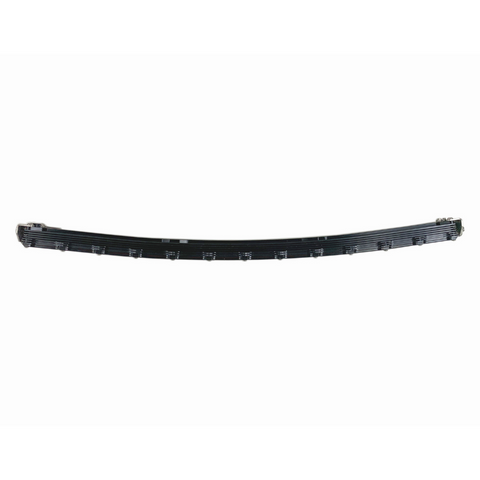

The Heretic 30" Amber Curved LED light bar is the biggest bang for your buck when it comes to LED light bars. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. These high performance 6-series curved amber LED light bars are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 30” Amber Curved LED light bar is recommended for forward-facing applications in aftermarket roof racks, UTV roll cages, and behind the grille of trucks and SUVs. It is specifically designed to align with the curve of your vehicle or UTV and requires an aftermarket mount. This light bar is best for cutting through foggy and dusty conditions. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo. With the bracket this becomes a 32" Amber Curved LED Light Bar.

What's Included

(1) 30 Inch Curved Amber Light Bar
Pigtail (Ending in a (+) and (-) wire ready to splice)
Mounting Hardware
Stainless Steel Mounts

Vehicle Application

Typically forward-facing placement for UTV roll cages. Can be used on factory truck bumpers as well to match the curve of the vehicle. Amber lens for dusty and foggy conditions. Requires aftermarket mount.

Parts Sold Separately

Wiring Harness
Aftermarket Mount for Roof Rack Attachment

Details/Specs

Shipping Weight: 5lbs
Type: 30” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Amber
Wattage: 180W
Amp Draw at 13.8V: 17.9A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 31” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
Lumens: 21780 lm
Lux At 10m:

Spot: 6188 lx
Flood: 1316 lx
Combo: 4239 lx

Candela:

Spot: 618750 cd
Flood: 131625 cd
Combo: 423900 cd

Beam Distance:

Spot: 1573 m
Flood: 726 m
Combo: 1302 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

30" Amber Curved LED Light Bar
