40” Performance and aesthetics:

Overview

The Heretic 40" Curved LED light bar is a beast of a light when it comes to LED light bars. They truly turn darkness into light. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. These high performance 6-series curved clear LED light bars are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 40” curved LED light bar is recommended for forward-facing applications in aftermarket roof racks like PRINSU and UTV roll cages. This light bar is best for visibility on clear night conditions. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo. With bracket included this becomes a 42" LED Light Bar.

What's Included

(1) 40 Inch Curved Clear Light Bar
Pigtail (Ending in a (+) and (-) wire ready to splice)
Mounting Hardware
Stainless Steel Mounts

Vehicle Application

Typically forward-facing placement for UTV roll cages that have a curved design. Requires aftermarket mount.

Parts Sold Separately

Wiring Harness
Aftermarket Mount for Roof Rack Attachment

Details/Specs

Shipping Weight: 8lbs
Type: 40” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 240W
Amp Draw at 13.8V: 25.4A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 41” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 42” x D 1.5” x H “2.4
Lumens: 30,000 lm
Lux At 10m:

Spot: 8250 lx
Flood: 1755 lx
Combo: 5652 lx

Candela:

Spot: 825000 cd
Flood: 1175500 cd
Combo: 565200 cd

Beam Distance:

Spot: 1817 m
Flood: 838 m
Combo: 1504 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

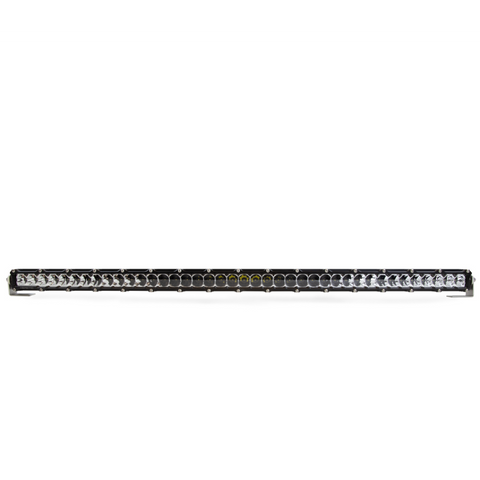

40" Curved Clear LED Light Bar
