Overview

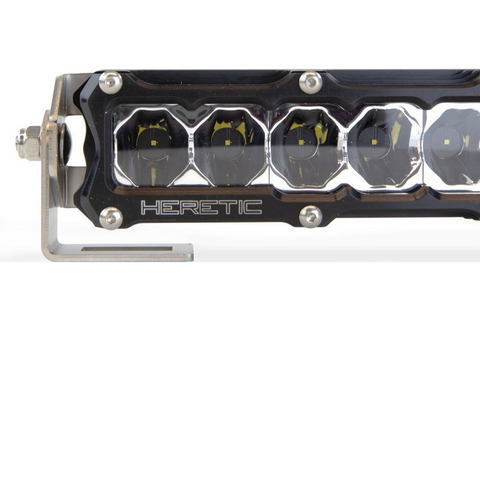

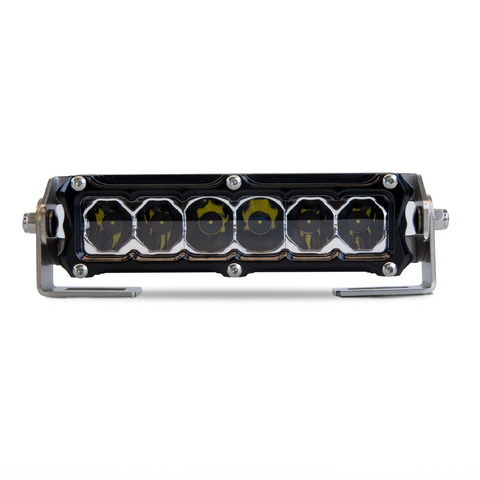

The Heretic 6" LED light bar is built for off-road. These high performance LED light bars are designed and manufactured in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 6” LED light bar is recommended as a ditch light, chase light, fog light, bumper or rack light. It’s specifically optimized for clear night conditions.

Features

USA Patented 6061 CNC Aluminum Grade Billet Housing
(6) 6-watt CREE LED
Designed, Manufactured, Assembled, Supported, and Shipped in Centerville,Utah
Customize Your Beam Pattern: Combo, Spot, or Flood
Customize Your Bezel - Contact Heretic Studio

Parts Sold Separate

Wiring Harness
Aftermarket Mount for Roof Rack Attachment
Amber Lens Attachment - Link

Details/Specs

Shipping Weight: 3lbs
Type: 6” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Ditch, Bumper, Chase, Fog, Rack Light
Light Color: White
Lens Color: Amber
Wattage: 30W
Amp Draw at 13.8V: 3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 7” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 8” x D 1.5” x H “2.4
Lumens: 4356 lm
Lux At 10m:

Spot: 1238 lx
Flood: 263 lx
Combo: 588 lx

Candela:

Spot: 123750 cd
Flood: 26325 cd
Combo: 58800 cd

Beam Distance:

Spot: 704 m
Flood: 324 m
Combo: 485 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

Vehicle Application

UTV Front Bumpers, Truck Front Bumpers. Typically lower placement and forward-facing. Often times placed on the sides and rear of roof racks to provide scene lighting. Requires aftermarket mount.

6" LED Light Bar
