Overview

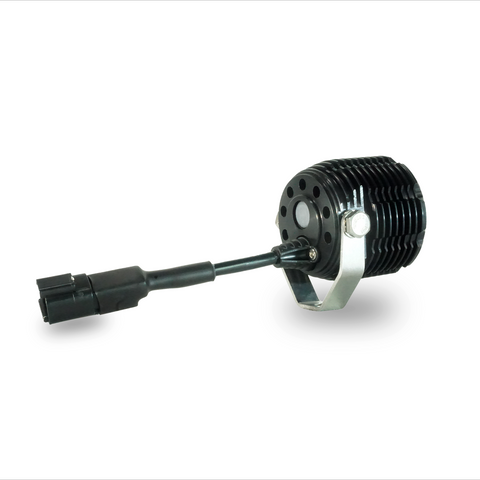

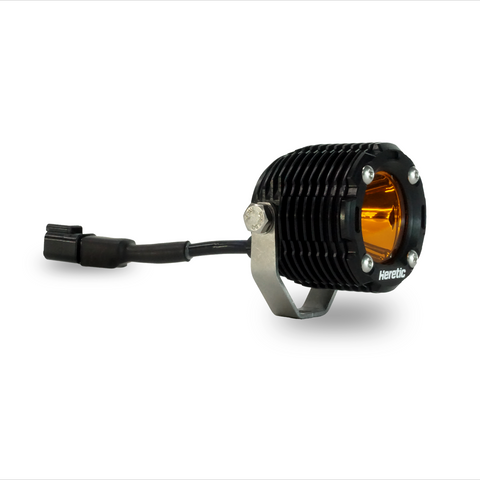

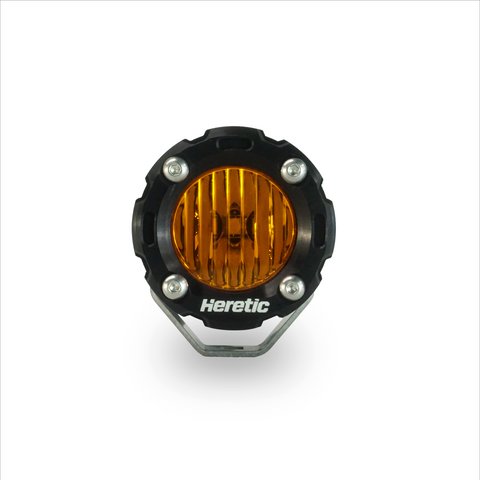

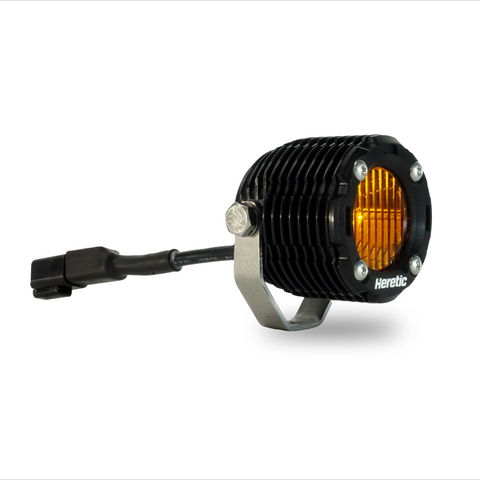

The Heretic BA-1R Amber LED Light Pod is our newest pod light used for various applications from an optimal chase light to a ditch light, A-pillar light and beyond. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. These high performance LED pod lights are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting, far reaching light. The BA-1R LED Light Pod is recommended on the front or rear bumpers of trucks, jeeps, SUVs, and UTVS. Customize Your Beam Pattern: Spot or Flood. They can also be used on the sides and rear of roof racks as a chase light.

Features

(1) BA-1R Amber LED Light Pod
USA Patented 6061 CNC Aluminum Grade Billet Housing
20-watt CREE LED

Vehicle Application

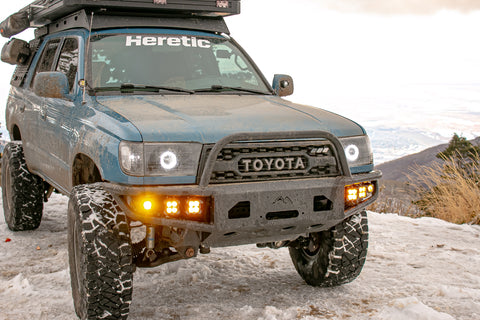

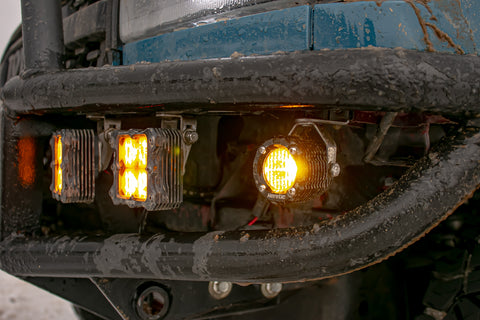

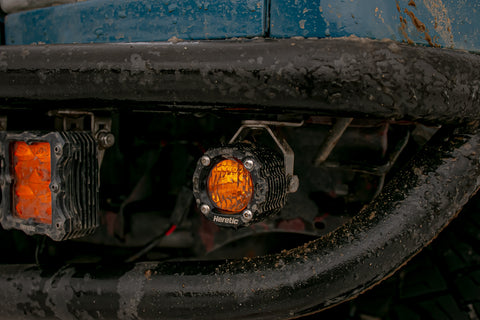

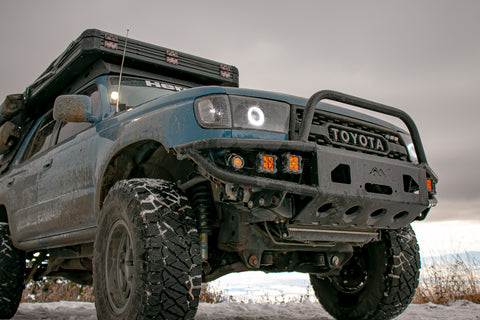

Ditch lights, A pillar for UTVs (similar to a ditch light, just called an A-Pillar light) roof rack scene lights, bumper lights. Often used with an amber lens for chase lights on both UTV and Trucks.

Parts Sold Separate

Wiring Harness

Details/Specs

BA-1 Light Pod (Each)

Shipping Weight	2 lbs
Type	2” LED Pod Light
Housing	CNC Aircraft-Grade Aluminum
Location	Multiple
Lens Color	Amber
Wattage	20W
Amp Draw at 13.8V	1.98A
Voltage	9V-36V
IP Rating	1P68
DIM (Light Only)	L 3” x D 2"
DIM (Light W/ Bracket):	N/A
Lumens	2,430
Lux At 10m	Spot: 140 lx Flood: 80 lx
Candela	Spot: 14000 cd Flood: 8000 cd
Beam Distance	Spot: 237 m Flood: 179 m
DOT Compliant	No
Prop 65	No
SAE/ECE	No

BA-1R Amber LED Pod Light
