Overview

The 6 series LED 20 inch light bar is one of the most rugged and reliable lights on the market. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. The housing is a CNC machined aircraft-grade aluminum that makes it the most durable and high-quality housing on the market. We use the highest-grade LEDs and circuit boards that allow this light to be as bright as it can be while still controlling heat. Internal reflectors have been designed and optimized to shape and put out the best light possible. Make this light yours. Customize the reflector beam configuration to all spot, all flood, or combo.

Kit Includes

20in Light Bar
Stainless Steel Powder Coated Brackets
Wiring Harness

Vehicle Trim Compatibility

Ford Bronco ('21+) Capable Bumper

Details/Specs

(20) 6-watt CREE LED
Full 120 watts driven at 100%
14520 lumen
6061 billet housing
22 x 2 x 1.5
I-P68 rated stainless steel mounts
Weight 3 lbs
Amp draw 11.3 Peak at 13.8V
LUX at 10m: 4125
Candella: 412500

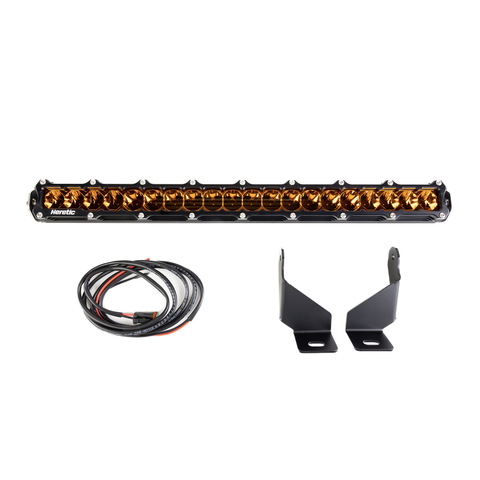

Kit Includes:

20" LED Light bar

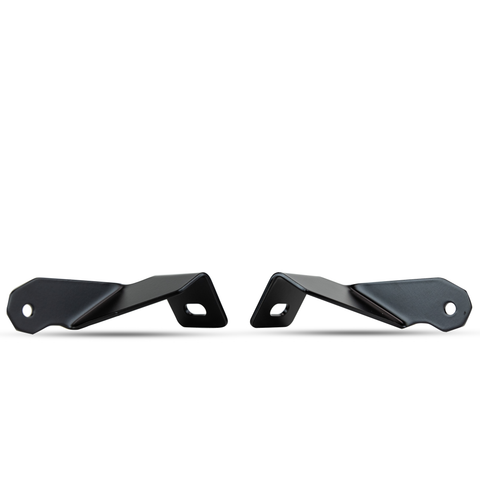

Bumper Light Mounting Brackets
Upfitter wiring adapter

Installation Guide

Click to Download: Bronco Capable 20in Kit Install Guide PDF

Ford Bronco (2021+) - 20" LED Capable Bumper Light Bar
