Upgrade your Ford SuperDuty’s visibility and style with this Curved 30-Inch LED Light Bar Kit. Designed to follow the contour of your truck’s front end, the curved light bar delivers a wider field of illumination, perfect for off-road adventures and low-light conditions. With the Powder Coated Stainless Steel custom mounting brackets provide a secure, factory-style fit on your F-250 or F-350. Easy to install and built to last.

The Heretic 30" Curved LED light bar is a beast of a light when it comes to LED light bars. These high performance 6-series curved LED light bars are designed and assembled in the USA. CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo and the lens color, Clear or Amber

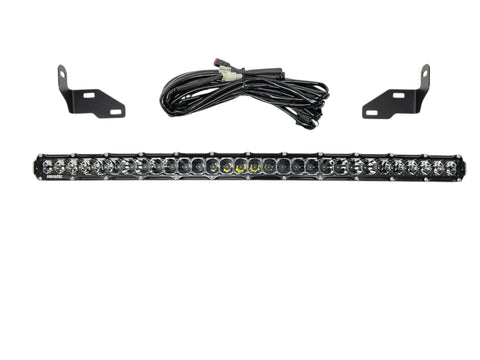

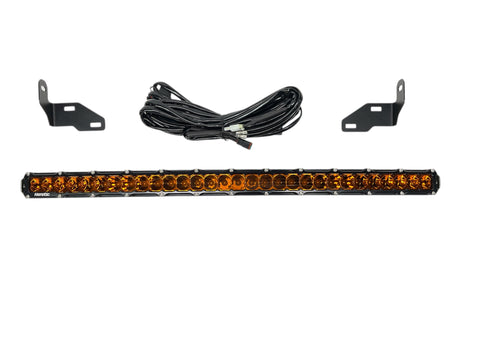

Kit Includes

Curved 30in bar
Wire Harness
Stainless Steel powder coated brackets
Hardware

Vehicle Trim Compatibility

2023+ Ford F-250, F-350, F-450 (Does not fit XL trim)

Details/Specs

Shipping Weight: 5lbs
Type: 30” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 180W
Amp Draw at 13.8V: 17.9A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 31” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
Lumens: 21780 lm
Lux At 10m:

Spot: 6188 lx
Flood: 1316 lx
Combo: 4239 lx

Candela:

Spot: 618750 cd
Flood: 131625 cd
Combo: 423900 cd

Beam Distance:

Spot: 1573 m
Flood: 726 m
Combo: 1302 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

F-250 & 350 Super Duty 30" Curved Bumper Light Bar Kit 2023+
