Overview

The Heretic 40" Curved LED light bar is a beast of a light when it comes to LED light bars. They truly turn darkness into light. These high performance 6-series curved clear LED light bars are designed and assembled in the USA. CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo.

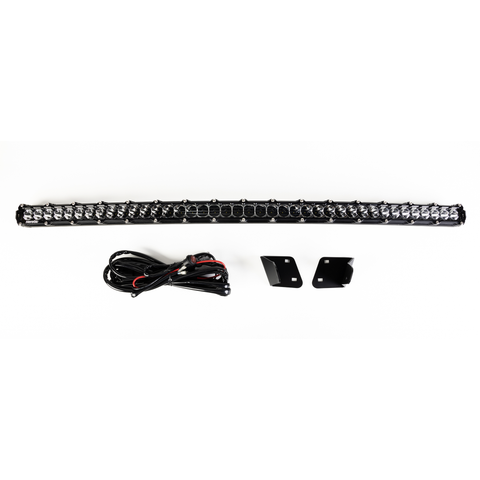

Kit Includes

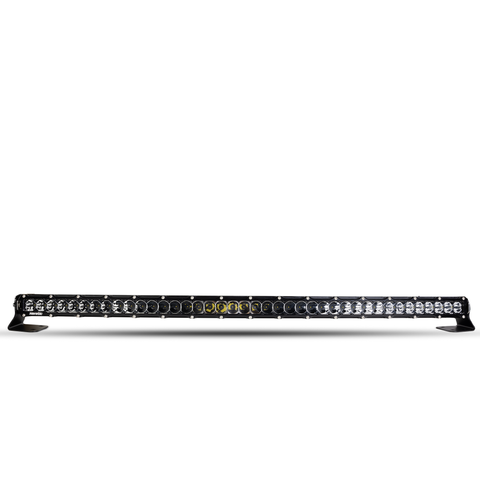

Curved 40in bar
Wire Harness

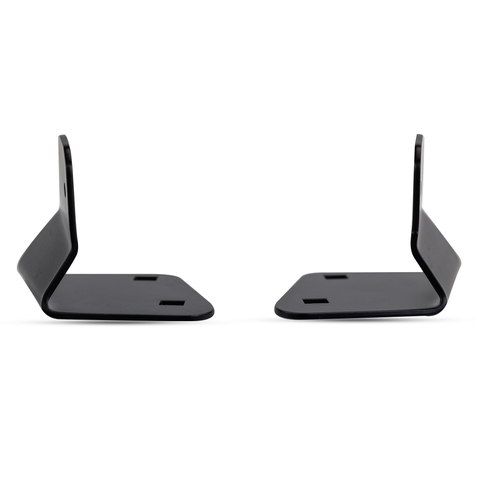

Stainless Steel powder coated brackets
Hardware

Vehicle Trim Compatibility

Ford F-250 ('20-'22)

Ford F-350 ('20-'22)

Details/Specs

Shipping Weight: 8lbs
Type: 40” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 240W
Amp Draw at 13.8V: 25.4A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 41” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 42” x D 1.5” x H “2.4
Lumens: 30,000 lm
Lux At 10m:

Spot: 8250 lx
Flood: 1755 lx
Combo: 5652 lx

Candela:

Spot: 825000 cd
Flood: 1175500 cd
Combo: 565200 cd

Beam Distance:

Spot: 1817 m
Flood: 838 m
Combo: 1504 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

Installation Guide

Click to Download: Ford F250-F350 Curved 40in Bumper LED Kit

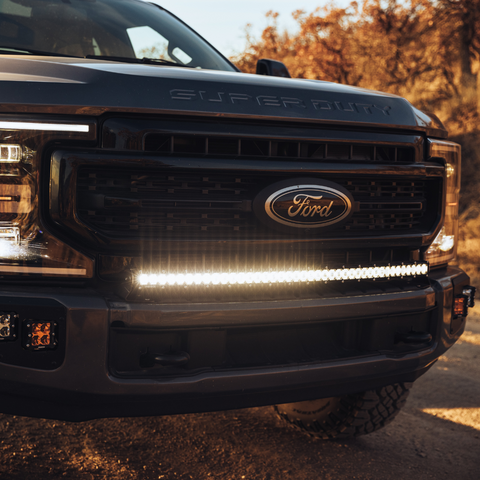

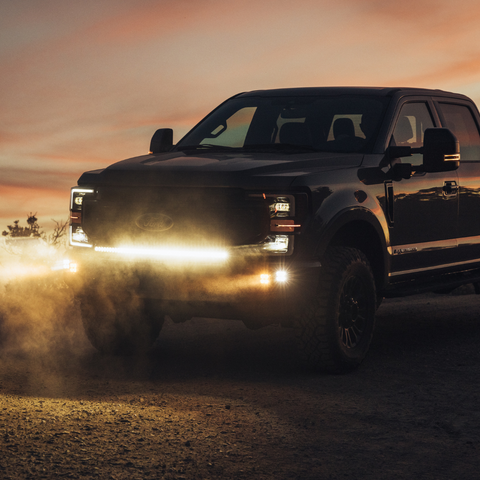

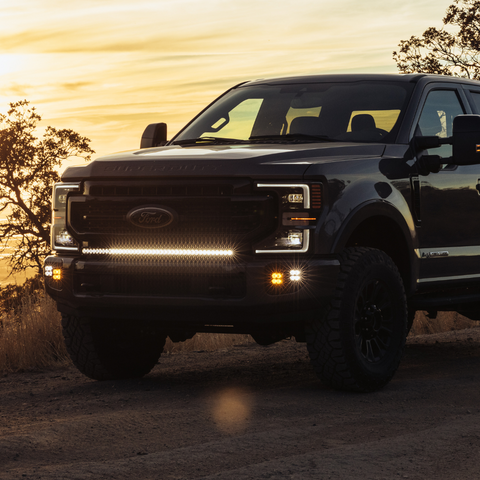

Ford F-250 and 350 (2020-2022) - 40" Curved LED Bumper Light Bar
