Overview

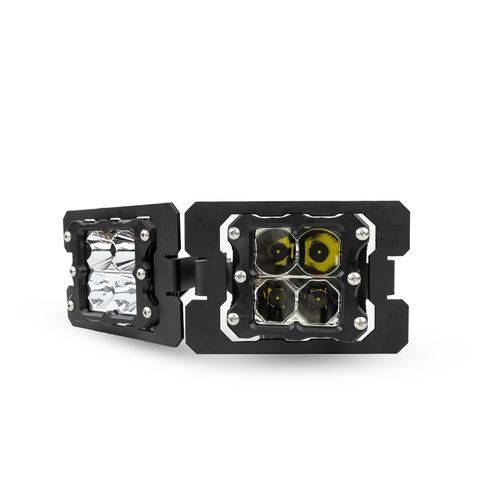

The Heretic Ford F-150 LED Fog Light Kit (2015-2020) is the best LED fog light kit on the market for your Ford truck. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. Featuring our staple Quattro Light Pod, the Bronco fog light kit increases your visibility two-fold from OEM fog light kits. We’ve custom built the fog light kit housing in a sleek, simple stainless steel powder coated bracket. The install is easy with the plug and play wire harness and choose between clear and amber lens. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo. This specific Ford LED Fog Light Kit is compatible with Ford F-150 Models (‘15-20).

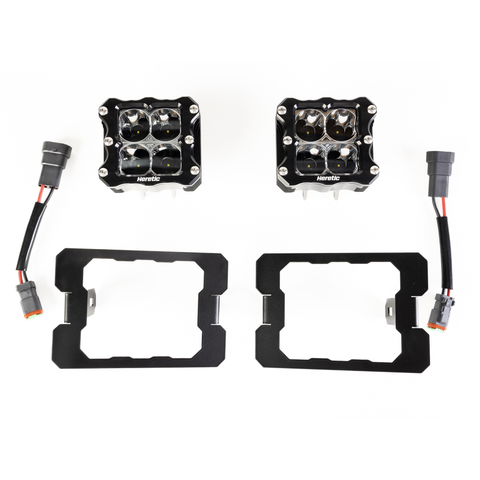

Kit Includes

(2) Quattro LED Light Pods With Clear Lenses
Premium Stainless Steel Powder Coated Fog Light Bracket
Wire Adapters

Vehicle Trim Compatibility

Ford F-150 (‘15-20)

Ford F-250 ('17-'20) All Trims Except for the Platinum Trim

Ford F-350 ('17-'20) All Trims Except for the Platinum Trim

Details/Specs

Quattro Light Pod

Shipping Weight: 4lbs
Type: Quattro Light Pod
Housing: CNC Aircraft-Grade Aluminum
Location: Fog Light Replacement
Light Color: White
Lens Color: Clear
Wattage: 24W
Amp Draw at 13.8V: 2A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 3” x D 1.5” x H 3”
DIM (Light W/ Bracket): N/A
Lumens: 3000 lm
Lux At 10m:
Spot: 825 lx
Flood: 176 lx
Combo: 500 lx
Candela:
Spot: 82500 cd
Flood: 17550 cd
Combo: 50025 cd
Beam Distance:
Spot: 574 m
Flood: 265 m
Combo: 447 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No

Installation Guide

Click to Download:

Ford F150 Fog Light Kit Installation Guide

Ford F-150 (2015-2020) - LED Fog Light Kit - Clear Lens
