Overview

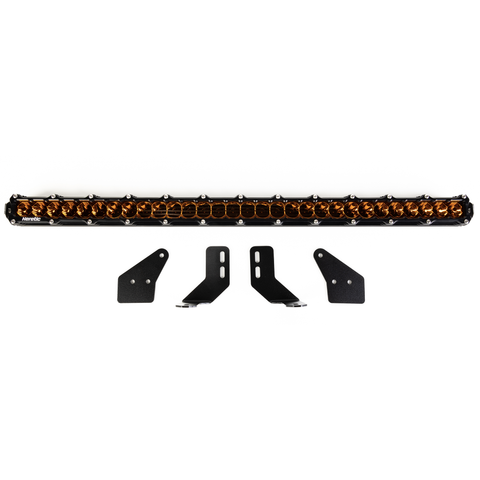

The Heretic Behind The Grille 30" LED light bar with Amber Lens is the best option for your Ford F150 Raptor's grille. This high performance 6-series amber LED light bar is designed and assembled in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. This light bar is optimized for visibility in foggy and dusty conditions. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo. With brackets included this becomes a 32" Behind the Grille LED Light Bar.

Features

USA Patented 6061 CNC Aluminum Grade Billet Housing
(30) 6-watt CREE LED
IP68 rated Stainless Steel Mounts
Customize Your Beam Pattern: Combo, Spot, or Flood
Customize Your Bezel - Contact Heretic Studio

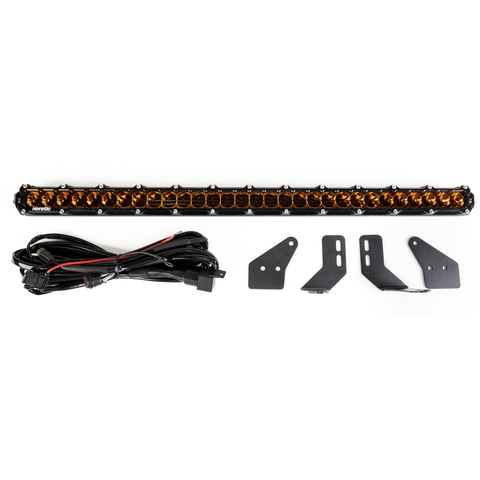

Wire Harness And Brackets Included In Kit

Vehicle Trim Compatibility

Ford F-150 Raptor (2017-2021)

Details/Specs

Shipping Weight: 5lbs
Type: 30” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Amber
Wattage: 180W
Amp Draw at 13.8V: 17.9A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 31” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
Lumens: 21780 lm
Lux At 10m:

Spot: 6188 lx
Flood: 1316 lx
Combo: 4239 lx

Candela:

Spot: 618750 cd
Flood: 131625 cd
Combo: 423900 cd

Beam Distance:

Spot: 1573 m
Flood: 726 m
Combo: 1302 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

Ford F150 Raptor (2017-2021) - Behind The Grille 30" LED Light Bar - Amber Lens
