Overview

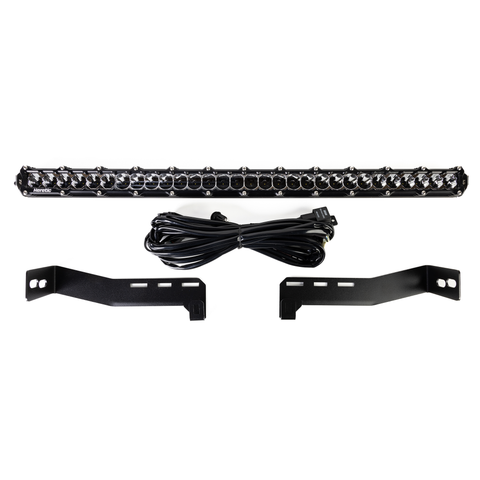

Kit includes 30in bar, Brackets, Hardware. Wiring Harness sold separately

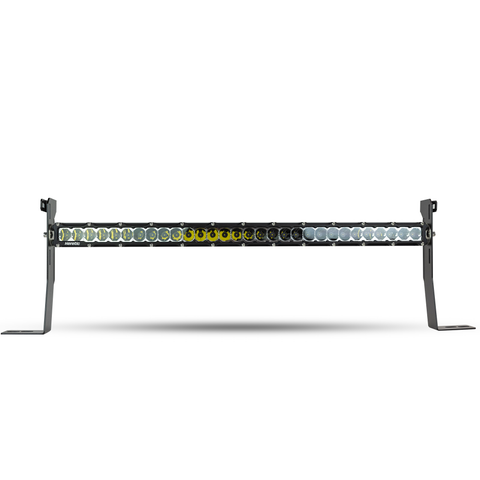

The Heretic Behind The Grille 30" LED light bar - Clear Lens is the best option for your Toyota 4Runner grille. This high performance 6-series amber LED light bar is designed and assembled in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. This light bar is optimal for use under clear night conditions. With brackets included this becomes a 32" Behind the Grille LED Light Bar.

Features

USA Patented 6061 CNC Aluminum Grade Billet Housing
(30) 6-watt CREE LED
IP68 rated Stainless Steel Mounts
Designed, Assembled, Supported, and Shipped in Centerville,Utah
Customize Your Beam Pattern: Combo, Spot, or Flood
Customize Your Bezel - Contact Heretic Studio
Wire Harness And Brackets Included In Kit

Vehicle Trim Compatibility

Toyota 4Runner (2010-2021)

Details/Specs

30" LED Light Bar

Shipping Weight: 5lbs
Type: 30” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 180W
Amp Draw at 13.8V: 17.9A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 31” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
Lumens: 21780 lm
Lux At 10m:

Spot: 6188 lx
Flood: 1316 lx
Combo: 4239 lx

Candela:

Spot: 618750 cd
Flood: 131625 cd
Combo: 423900 cd

Beam Distance:

Spot: 1573 m
Flood: 726 m
Combo: 1302 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

Toyota 4Runner - Behind The Grille - 30 inch Light Bar - Clear Lens
