Overview

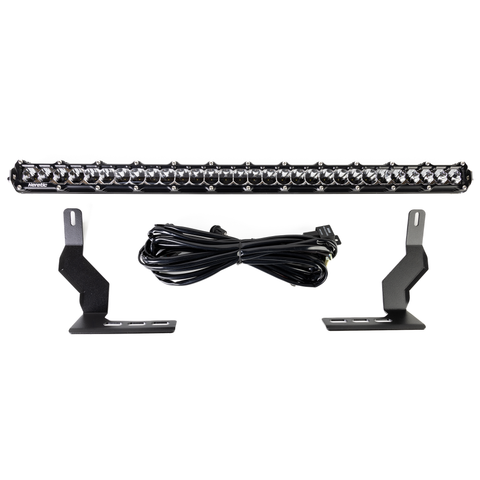

Kit Contains: 30in bar, Brackets, Mounting Hardware. Wire harness sold separately.

The 6 series LED 30 inch light bar is the biggest bang for your buck when it comes to light bars. Because of its ideal size, it is typically used in forward-facing applications in aftermarket roof racks, UTV roll cages, and behind the grill of trucks and SUVs. The housing is a CNC machined aircraft-grade aluminum that makes it the most durable and high-quality housing on the market. We use the highest-grade LEDs and circuit boards that allow this light to be as bright as it can be while still controlling heat. Internal reflectors have been designed and optimized to shape and put out the best light possible. Make this light yours. Customize the reflector beam configuration to all spot, all flood, or combo. Chose between a clear lens or get an amber lens for dusty and foggy conditions. Color the bezel to match your rig. Give us a call and we'll make it happen. Designed and assembled in the USA!

Kit Includes

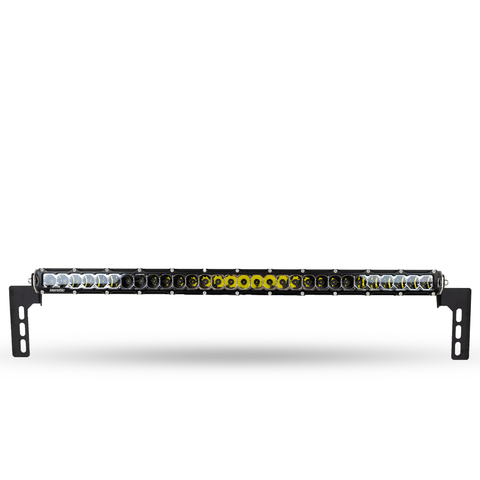

30in Light Bar W/ Clear Lens

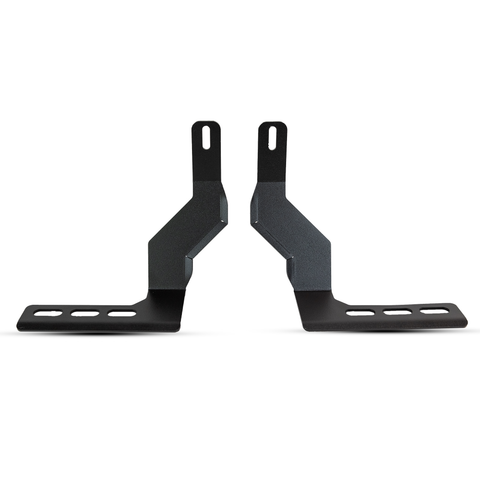

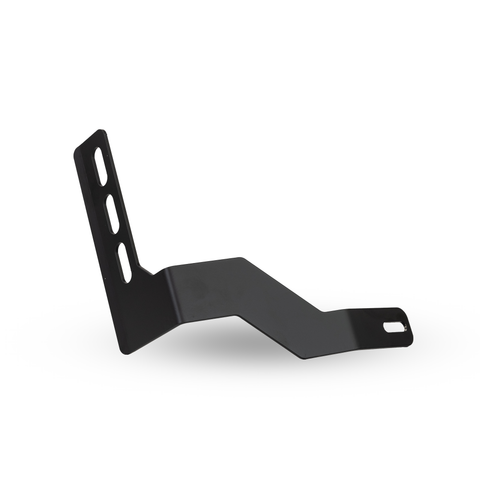

Stainless Steel Powder Coated Brackets
Hardware

Sold Separately

Wiring Harness

Replacement Lenses

Vehicle Compatibility

14-21 Toyota Tundra

Specifications

(30) 6-watt CREE LED
Full 180 watts of power, driven at 100%
21780 lumen
6061 billet housing
31 5/8 x 2 x 1.5 (bracket to bracket)
IP68 rated Stainless steel mounts
Amp draw 17.9 Peak at 13.8V
Optional amber lens available
LUX: 6188
Candella: 618750

Installation Guide

Click to Download:
Toyota Tundra Behind the Grille Installation Guide

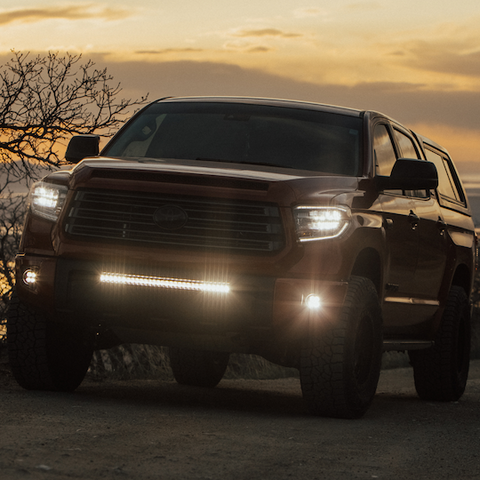

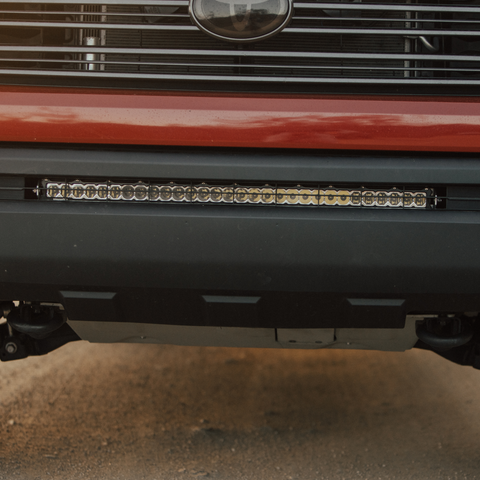

Toyota Tundra - Behind The Grille - 30 inch Light Bar - Clear Lens
